Specifications
Engine
AC Output
Receptacles
Displacement
DC Output
Starting System
Fuel Tank Capacity
Run Time on One Tankful
Dimensions (L x W x H)
Noise Level
Dry Weight

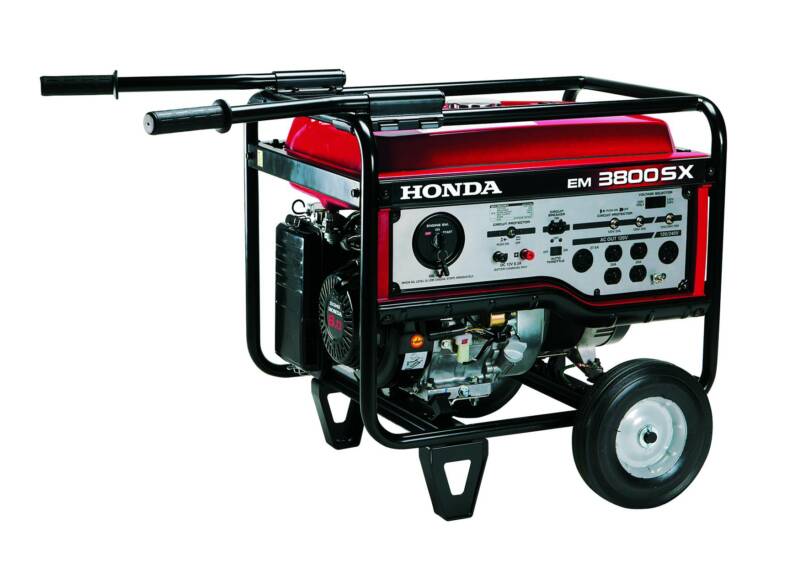

When it comes to home power generators, the EM3800S offers the best combination of features for portable home standby and other applications where electric or remote starting is required.
This generator comes standard with a 2-wheel kit for easy transport. It also has the option of electric start for further convenience. Thanks to the Honda OHV commercial grade engine, this generator can produce a maximum of 3800 watts of power and features automatic voltage regulator, auto idle, automatic choke and fuel cut solenoid for operation with the optional remote start kit. In addition this generator has a full frame for protection and 120/240V operation.
The voltage selection switch allows for total generator output to be available through each of the 120 volt outlet for powering electric motors with large starting requirements (Output is limited to the rating of each receptacle).
Honda’s Deluxe Generators come standard with a variety of convenience features including simultaneous AC/DC use, fuel meter, large fuel tank capacity, electric start capability (except EB3000c) with auto choke and fuel solenoid for remote starting capability. All of these models are powered by commercial grade Honda OHV engines for quiet, durable and efficient power and have Voltage Regulation for continuous stable power. As Home Power Generators, Honda generators are ideal for creating home emergency and home standby power as well as applications where remote start capability* is desired.
HONDA   EM3800S   Generator
8 HP, Single Cylinder, Overhead Valve, Air Cooled
242 cc
120/240V
3800W max.
(31.6/15.8A)
3300W rated
(27.5/13.7A)
2-20A 125V Duplex
NEMA Plug Number:
5-20P

30A 125V Locking Plug
NEMA Plug Number:
L5-30P

20A 125/250V Locking Plug
NEMA Plug Number:
L14-20P
12V, 100W, (8.3A)
Recoil, electric
6.6 gallons
10.4 hrs. @ rated load
15.6 hrs. @ 1/2 load

41.9" x 27.2" x 29.2"
71 dB @ rated load
192 lbs.
