Specifications
Engine
AC Output
Receptacles
Displacement
DC Output
Starting System
Fuel Tank Capacity
Run Time on One Tankful
Dimensions (L x W x H)
Noise Level
Dry Weight

11 HP, Single Cylinder, Overhead Valve, Air Cooled
120/240V
5000W max.
(41.7/20.8A)
4500W rated
(37.5/18.8A)
337 cc

(2)20A 125V Duplex
NEMA Plug Number:
5-15P or 5-20P

30A 125V Locking Plug
NEMA Plug Number:
L5-30P

30A 125/250V Locking Plug
NEMA Plug Number:
L14-30P
N/A
Recoil
6.6 gallons
8.3 hrs. @ rated load
11.9 hrs. @ 1/2 load
41.9" x 27.2" x 29.2"
72 dB @ rated load
214 lbs.

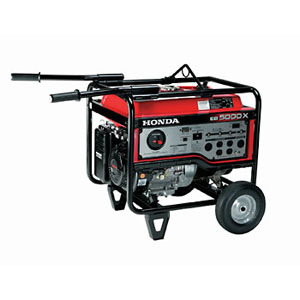

HONDA EB5000  Generator
EB5000 Features & Benefits

   * Honda Overhead Valve Engine
   * Oil Alert®
   * Electronic Ignition
   * Circuit Breakers
   * Fuel Meter
   * Standard Wheel Kit
   * Automatic Voltage Regulator
   * Full Tubing Frame for Protection and Easy Transport
   * USDA-Qualified Spark Arrestor/Muffler
   * Automatic Idle
   * 120/240V Selector Switch
   * GFCI/Neutral Bond - Full Panel
   * 2-Wheel Transport Kit
   * Hanger Kit
   * 2 Year Residential Warranty
   * 1 Year Commercial Warranty
Honda's legendary industrial generators have earned a reputation in the construction and rental industries for their incredibly rugged reliability. A recent Independent Survey of Construction and Industrial Users "Rated Honda #1". All EB series Honda generators come standard with full G.F.C.I. circuit protection for regulated job sites. All models are EPA and CARB compliant.
This generator provides up to 5000 watts of regulated power. Standard features include Steel Fuel Tank with 4-step filter, automatic voltage regulator, Auto Throttle, G.F.C.I. receptacle and 120/240V operation. Design for daily job site use, the full frame protection, standard bale hook, and 2 Wheel kit is the #1 choice of commercial users. The voltage selection switch allows for total generator output to be available through each of the 120-volt outlet for powering electric motors with large starting requirements (Output is limited to the rating of each receptacle).
