Specifications
Engine
AC Output
Receptacles
Displacement
DC Output
Starting System
Fuel Tank Capacity
Run Time on One Tankful
Dimensions (L x W x H)
Noise Level
Dry Weight

8 HP, Single Cylinder, Overhead Valve, Air Cooled
120/240V
3800W max.(31.6/15.8A)
3300W rated (27.5/13.7A)
242 cc

2-20A 125V Duplex
NEMA Plug Number:
5-15P or 5-20P

30A 125V Locking Plug
NEMA Plug Number:
L5-30P

20A 125/250V Locking Plug
NEMA Plug Number:
L14-20P
N/A
Recoil
6.6 gallons

10.4 hrs. @ rated load
15.6 hrs. @ 1/2 load
41.9" x 27.2" x 29.2"
71 dB @ rated load
185 lbs.

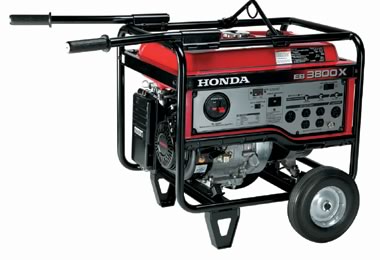

HONDA EB3800  Generator

EB3800 Features & Benefits

   * Honda Overhead Valve Engine
   * Oil Alert®
   * Electronic Ignition
   * Circuit Breakers
   * Fuel Meter
   * Hanger Kit
   * 2-Wheel Kit Standard
   * Automatic Voltage Regulator
   * Heavy-duty (27mm) One Piece, Welded Frame with Reinforced Standing Legs
   * USDA-Qualified Spark Arrestor/Muffler
   * Automatic Idle
   * 120/240V Selector Switch
   * OSHA Compliant Neutral Bond with Full Generator GFCI
   * 2 Year Residential Warranty
   * 1 Year Commercial Warranty
Honda's legendary industrial generators have earned a reputation in the construction and rental industries for their incredibly rugged reliability. A recent Independent Survey of Construction and Industrial Users "Rated Honda #1". All EB series Honda generators come standard with full G.F.C.I. circuit protection for regulated job sites. All models are EPA and CARB compliant.
This generator provides up to 3800 watts of regulated power. Standard features include automatic voltage regulator, Auto Throttle, G.F.C.I. receptacle and 120/240V operation. This unit also comes standard with a 2-wheel Transport Kit. The voltage selection switch allows for total generator output to be available through each of the 120 volt outlet for powering electric motors with large starting requirements (Output is limited to the rating of each receptacle).
